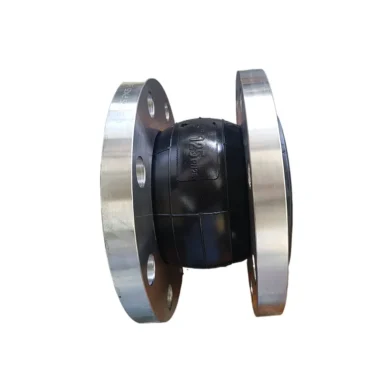

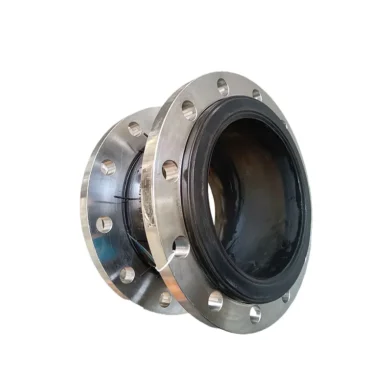

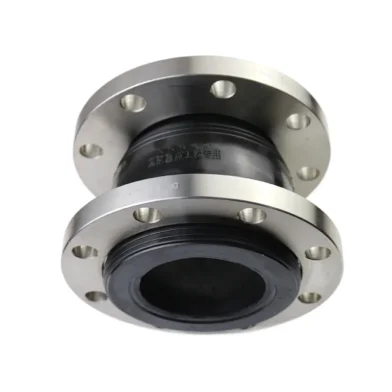

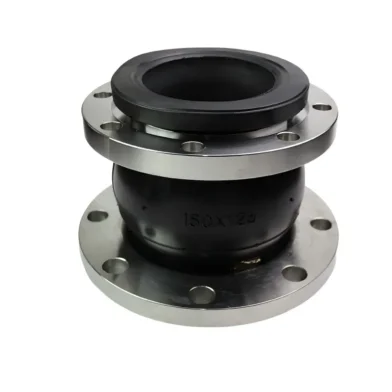

Rubber Expansion Joint
Key Features
Technical Specifications
| Nominal Diameter (DN) | Inch | Length (L) mm | Flange Thickness (b) mm | Bolt Qty (n) | Bolt Hole Dia. mm | Bolt Circle Dia. (D1) mm | Axial Extension mm | Lateral Displacement mm | Angular Deflection (°) |
|---|---|---|---|---|---|---|---|---|---|
| DN32 | 1.25” | 95 | 16 | 4 | 18 | 100 | 6 | 9 | 9 |
| DN40 | 1.5” | 95 | 18 | 4 | 18 | 110 | 6 | 10 | 9 |
| DN50 | 2” | 105 | 18 | 4 | 18 | 125 | 7 | 10 | 10 |
| DN65 | 2.5” | 115 | 20 | 4 | 18 | 145 | 7 | 13 | 11 |
| DN80 | 3” | 135 | 20 | 4 | 18 | 160 | 8 | 15 | 12 |
| DN100 | 4” | 150 | 22 | 8 | 18 | 180 | 10 | 19 | 13 |
| DN125 | 5” | 165 | 24 | 8 | 18 | 210 | 12 | 19 | 13 |
| DN150 | 6” | 180 | 24 | 8 | 23 | 240 | 12 | 20 | 14 |
| DN200 | 8” | 210 | 24 | 8 | 23 | 295 | 16 | 25 | 22 |
| DN250 | 10” | 230 | 26 | 12 | 23 | 350 | 16 | 25 | 22 |
| DN300 | 12” | 245 | 28 | 12 | 23 | 400 | 16 | 25 | 22 |
| DN350 | 14” | 255 | 28 | 16 | 23 | 460 | 16 | 25 | 22 |
| DN400 | 16” | 255 | 30 | 16 | 25 | 515 | 16 | 25 | 22 |
| DN450 | 18” | 255 | 30 | 20 | 25 | 565 | 16 | 25 | 22 |
| DN500 | 20” | 255 | 32 | 20 | 25 | 620 | 16 | 25 | 22 |
| DN600 | 24” | 260 | 36 | 20 | 30 | 725 | 16 | 25 | 22 |
| DN700 | 28” | 260 | 36 | 24 | 30 | 840 | 16 | 25 | 22 |
| DN800 | 32” | 260 | 38 | 24 | 34 | 950 | 16 | 25 | 22 |
| DN900 | 36” | 260 | 42 | 28 | 34 | 1050 | 16 | 25 | 22 |
| DN1000 | 40” | 260 | 44 | 28 | 34 | 1160 | 18 | 26 | 24 |
| DN1200 | 48” | 260 | 48 | 32 | 41 | 1380 | 18 | 26 | 24 |
| DN1400 | 56” | 350 | 44 | 36 | 34 | 1560 | 20 | 28 | 26 |
| DN1600 | 64” | 350 | 46 | 40 | 34 | 1760 | 25 | 35 | 30 |
| DN1800 | 72” | 350 | 52 | 44 | 41 | 1970 | 25 | 35 | 30 |
| DN2000 | 80” | 420 | 54 | 48 | 48 | 2180 | 25 | 35 | 30 |
| DN2200 | 88” | 580 | 40 | 52 | 48 | 2390 | 25 | 35 | 30 |
| DN2400 | 96” | 610 | 41 | 56 | 48 | 2600 | 25 | 35 | 30 |
| DN2600 | 104” | 650 | 42 | 60 | 54 | 2810 | 25 | 35 | 30 |
| DN2800 | 112” | 680 | 45 | 64 | 54 | 3020 | 25 | 35 | 30 |
| DN3000 | 120” | 680 | 50 | 68 | 54 | 3220 | 25 | 35 | 30 |
Notes
Customization available upon request with specific drawings or specifications; flanges are based on the “National General Water Supply and Drainage Standard Atlas,” others follow HG/T2289-92.
For DN350-600(2) models, working pressure is 1.6MPa; for DN32-400(3) models, working pressure is 2.5MPa.
For DN700-DN200 models, working pressure is 1.0MPa; for DN1400, working pressure is 0.6MPa; for DN1600-DN1800, working pressure is 0.4MPa, flanges are selected according to 0.6MPa; for DN2000, working pressure is 0.25MPa, flanges are selected according to 0.6MPa pressure.
For high-rise water supply, products above DN200 must have fixed supports or brackets; otherwise, anti-pullout devices should be installed.
| Project | Unit | JGD-1 | JGD-2 | JGD-3 |
|---|---|---|---|---|
| Model | – | JGD-1 | JGD-2 | JGD-3 |
| Working Pressure | MPa (kgf/cm²) | 1.0 (10) | 1.6 (16) | 2.5 (25) |
| Burst Pressure | MPa (kgf/cm²) | 2.0 (20) | 3.0 (30) | 4.5 (45) |
| Vacuum Resistance | KPa (mmHg) | 53.3 (400) | 86.7 (650) | 100 (750) |
| Operating Temperature | °C | -15 ~ 115°C (Special: -30 ~ 250°C) | – | – |
| Applicable Media | – | Air, Compressed Air, Water, Seawater, Hot Water, Oil, Acid, Alkali, etc. |
| Material | Temperature Range (°C) | Oil Resistance | Acid & Alkali Resistance | Elasticity | Abrasion Resistance | Typical Applications |
|---|
| EPDM | -40 ~ 120 | Poor | Excellent | Excellent | Medium | Water, Steam, Air |
| NR (Natural Rubber) | -30 ~ 80 | Poor | Medium | Excellent | Excellent | Industrial Water, Air |
| NBR | -20 ~ 100 | Excellent | Medium | Good | Good | Oil, Lubrication Systems |
| Neoprene | -35 ~ 100 | Good | Good | Medium | Good | Seawater, Mild Chemicals |
| Silicone | -60 ~ 200 | Poor | Poor | Good | Low | Food Grade, Medical |
| FKM (Viton) | -20 ~ 250 | Excellent | Excellent | Medium | Excellent | Chemical, High Temp Oil |
| Butyl (IIR) | -40 ~ 120 | Poor | Good | Excellent | Medium | Gas, Acidic Gases |
What are the main applications of rubber expansion joints?
Rubber expansion joints are widely used in pipelines to absorb vibration, reduce noise, and compensate for axial and lateral movement. They are commonly used in HVAC systems, water supply, wastewater treatment, chemical processing, and industrial piping.
What materials are available for your rubber expansion joints?
Our rubber expansion joints are available in various materials such as EPDM, NBR, Neoprene, PTFE-lined rubber, and food-grade silicone. The material can be selected based on media, pressure, and temperature requirements.
Can you produce customized rubber expansion joints based on drawings or specific requirements?
Yes, we provide OEM and ODM services. You can send us your drawing or specifications, and our technical team will offer a matching solution with fast production and delivery.
What documents are included with the shipment?
We provide a complete set of export documents, including packing list, commercial invoice, product test report, material certificate, and, if required, custom clearance documents.
